Description

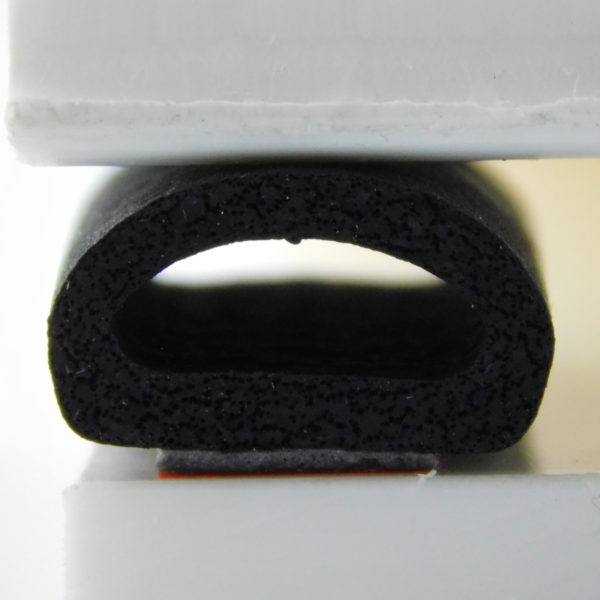

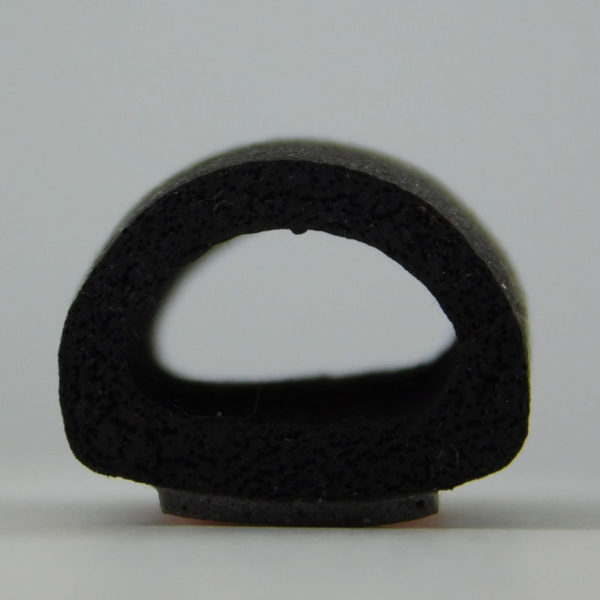

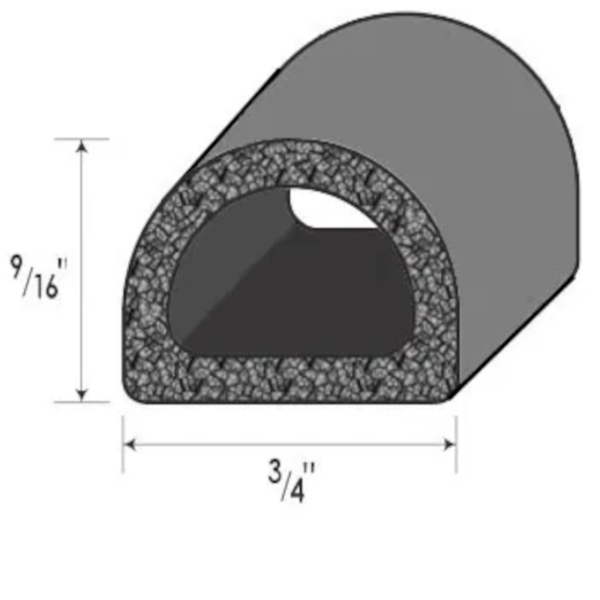

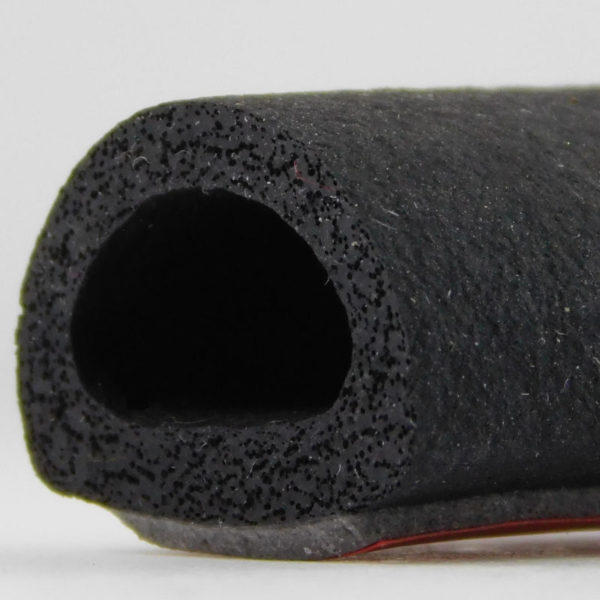

The S0135 D-Profile Rubber Seal has a height of 9/16” (14.2mm) and a width of 3/4” (19mm). This Rubber Seal is ideal for doors and windows, providing sealing, shock absorption and cushioning.
The S0135 is made of TPE and is available in black.
You can order our D-Profile Rubber Seals with a simple transfer tape adhesive or a 3M Heat Activated Tape System (recommended). This system does not require heat by end user. The heat is applied at the factory to attach the tape to the seal, granting a strong bond between them.
Applications include:
• Doors
• Windows
• Cabinets
• Tool Boxes for Trucks
• Sunroofs
• Skylights
Installation Instructions
Tools needed: isopropyl alcohol (rubbing alcohol), clean cloth, scissors or utility knife.
1- The plastic extrusion surface temperature and the installation surface area should be at least 75°F (24°C) for best results.
2- The installation area must be free of all dust, dirt, oils and moisture. Use a clean cloth soaked with isopropyl alcohol (rubbing alcohol) to clean surface area and allow to dry.
3- Peel back release liner on tape 1 to 2 feet (.31 to .61 metres) at a time. This will prevent the adhesive from contacting and picking up any foreign material. Avoid touching tape surface area.
4- Place extrusion firmly in the desired area. Do not stretch extrusion.
5- After installation is complete, apply a firm, uniform pressure along the complete length of the extrusion to ensure a good tape bond.
