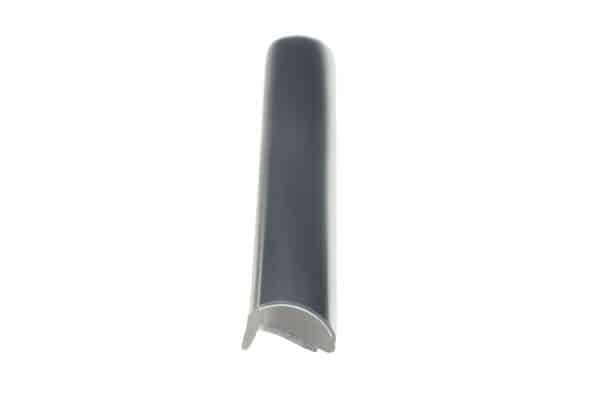

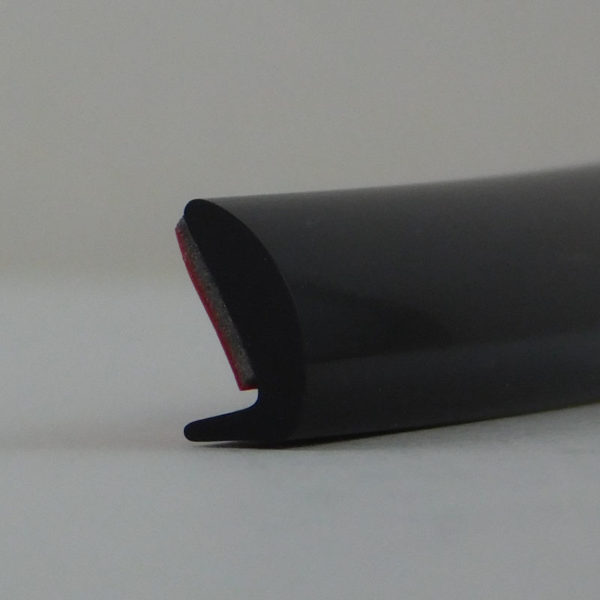

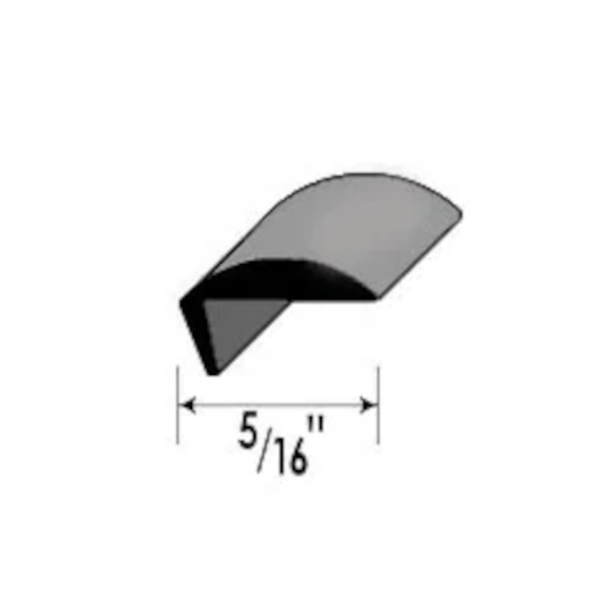

The NE Lip Guard Trim Trim is 5/16” (7.937mm) wide. This Lip Guard Trim can be used in vehicles, furniture, spas, tubs and almost any unfinished edge. It comes with a 3M Acrylic Foam Tape for easy, quick installation.
The NE Series is made of flexible PVC and is available in black, chrome, gold, alabaster silver, absolute red, arctic frost, Barcelona red, black forest, black sand pearl, blazing blue, blizzard pearl, blue ribbon metallic, blue streak, cassis pearl, classic silver, clear, cosmic blue, crystal red tintcoat, desert sand, everglade metallic, flint mica, golden umber, ingot silver metallic, magnetic gray, magnetic metallic, meteor metallic, mod steel metallic, nautical blue, pacific blue, polar white, pyrite mica, radient red, ruby red metallic, sandy beach, silver sky, slate metallic, super white, white platinum pearl or winter gray.
Other colors are available on orders over 10,000 ft. Contact us for more information.
• Vehicle Fenders
• Truck Bed Covers
• Camper Shells
• Spas, Tubs
• Unfinished Edges
Do not stretch molding while installing.
1. Temperature of installation surface area and moldings must be at least 20°C (70°F).
2. Always cut moldings from the chrome side downward.
3. To cut, use anvil type shears (Ronan blade cutter is ideal).
4. Clean area thoroughly with a non-oily general purpose wax and grease remover – 3M general purpose cleaner followed by isopropyl alcohol is preferred.
5. Do not touch or contaminate adhesive once liner is removed.
6. Apply moldings on a flat surface only – not on a ridge.
1. Apply a masking tape guide line to the area molding will be applied. Do not apply masking to a freshly painted surface.
2. Clean area above masking tape guide using a general purpose cleaner followed by isopropyl alcohol. Use a clean lint free cloth.
3. Remove 8”-10” of adhesive protective liner at a time and apply molding using a rolling motion. Check molding clearance with all doors by opening each carefully. Once the molding is fixed to the car it should not be removed.
4. Using firm pressure (20-30lbs) rub molding in place with a molding roller (preferred) or a cloth to pressurize adhesive and ensure a maximum bond. Press hard with a blunt object on all ends to ensure permanent adhesion.
Do not expose to heat above 93°C (200°F). Trimco is not responsible for damage to painted surfaces caused by masking tape or molding application or removal.

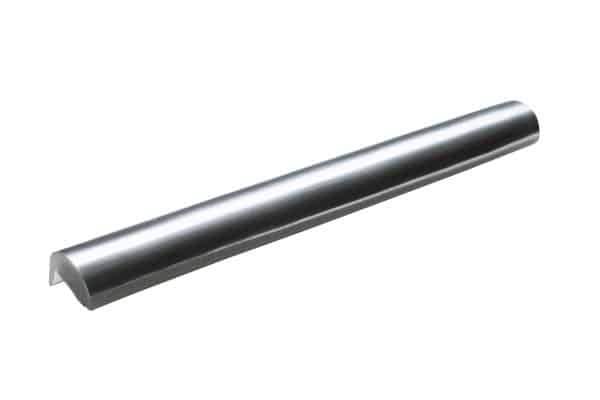

Chrome moldings feature a permanent, clear PVC top coating that protects the bright finish from weathering. To ensure maximum molding life and to validate warranty, all cut ends must be sealed with a clear acrylic end sealer.
