Height: 1/4″
Width: 1/2″
Colors available: black
Material: TPE

SKU: S0114 Categories: ,

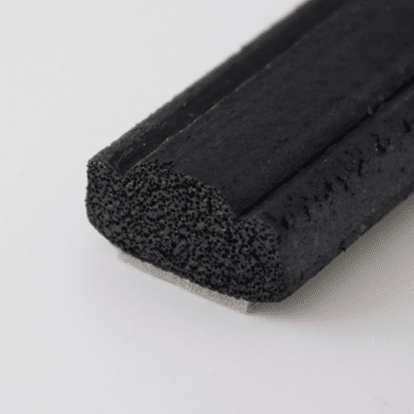

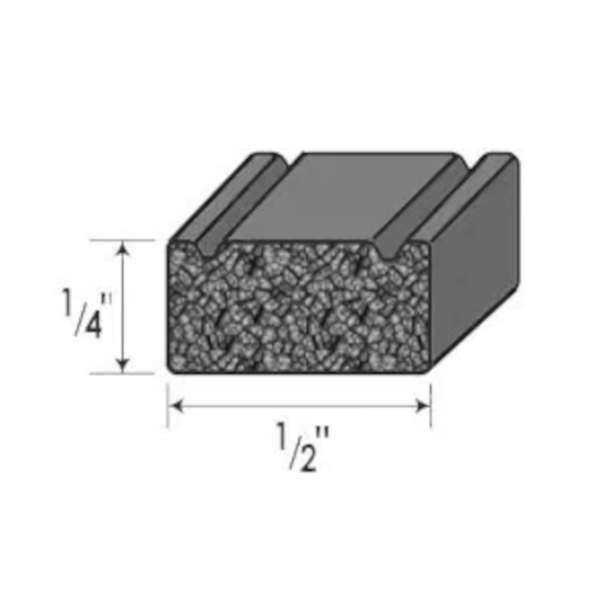

The S0114 Ribbed Profile Rubber Seal has a height of 1/4” (6.3mm) and a width of 1/2” (12.7mm). This Rubber Seal is ideal for doors and windows, providing sealing, shock absorption and cushioning.

The S0114 is made of TPE and is available in black.

You can order our Ribbed Profile Rubber Seals with a simple transfer tape adhesive or a 3M Heat Activated Tape System (recommended). This system does not require heat by end user. The heat is applied at the factory to attach the tape to the seal, granting a strong bond between them.

Applications include:

• Doors
• Windows
• Cabinets
• Tool Boxes for Trucks
• Sunroofs
• Skylights

Additional information

Weight N/A
Dimensions N/A



500' (152.4m)


Heat Activated Tape System, Transfer Tape

Installation Instructions

Tools needed: isopropyl alcohol (rubbing alcohol), clean cloth, scissors or utility knife.

1- The plastic extrusion surface temperature and the installation surface area should be at least 75°F (24°C) for best results.

2- The installation area must be free of all dust, dirt, oils and moisture. Use a clean cloth soaked with isopropyl alcohol (rubbing alcohol) to clean surface area and allow to dry.

3- Peel back release liner on tape 1 to 2 feet (.31 to .61 metres) at a time. This will prevent the adhesive from contacting and picking up any foreign material. Avoid touching tape surface area.

4- Place extrusion firmly in the desired area. Do not stretch extrusion.

5- After installation is complete, apply a firm, uniform pressure along the complete length of the extrusion to ensure a good tape bond.
